Carif 260 BSA

New

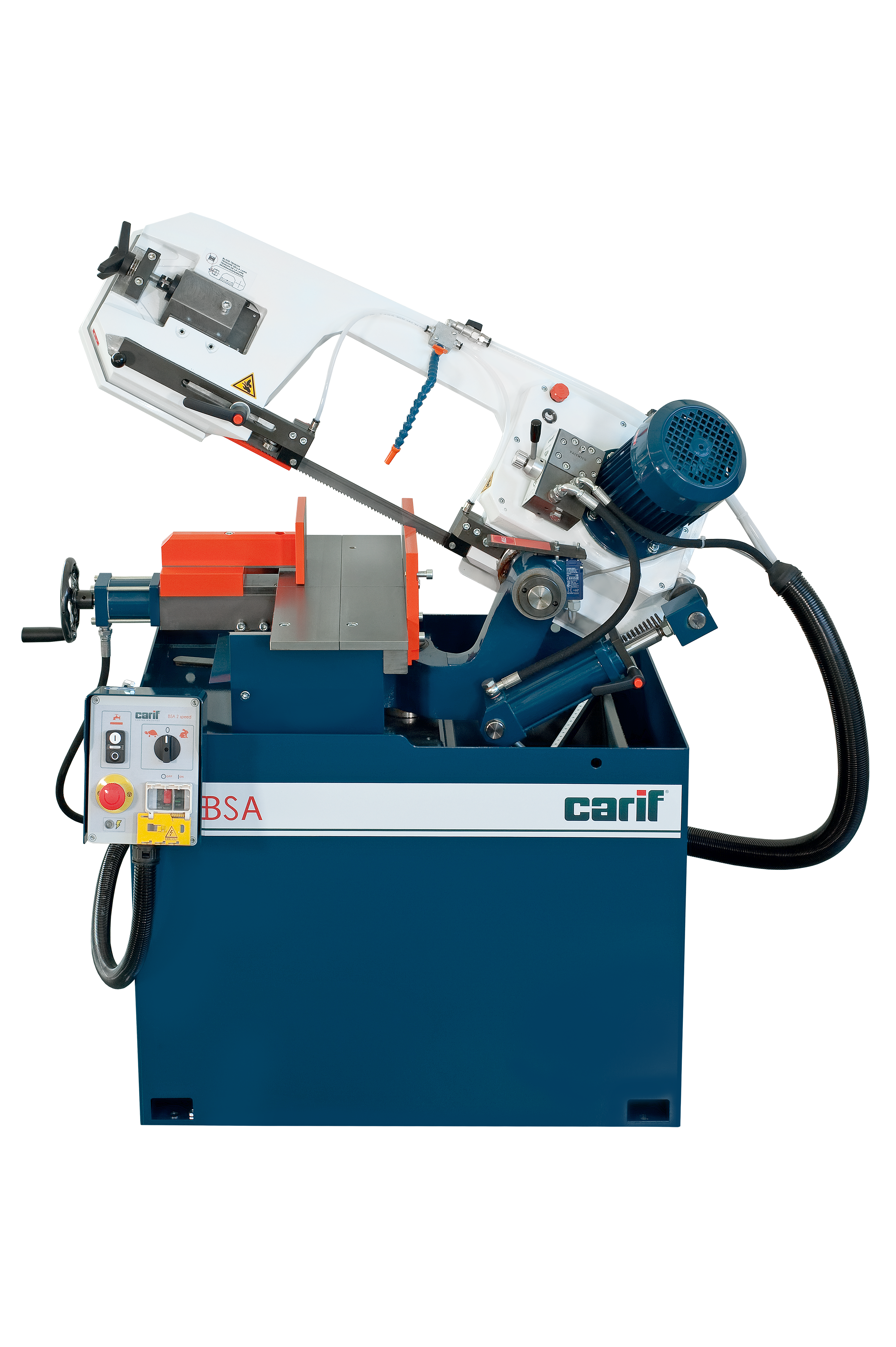

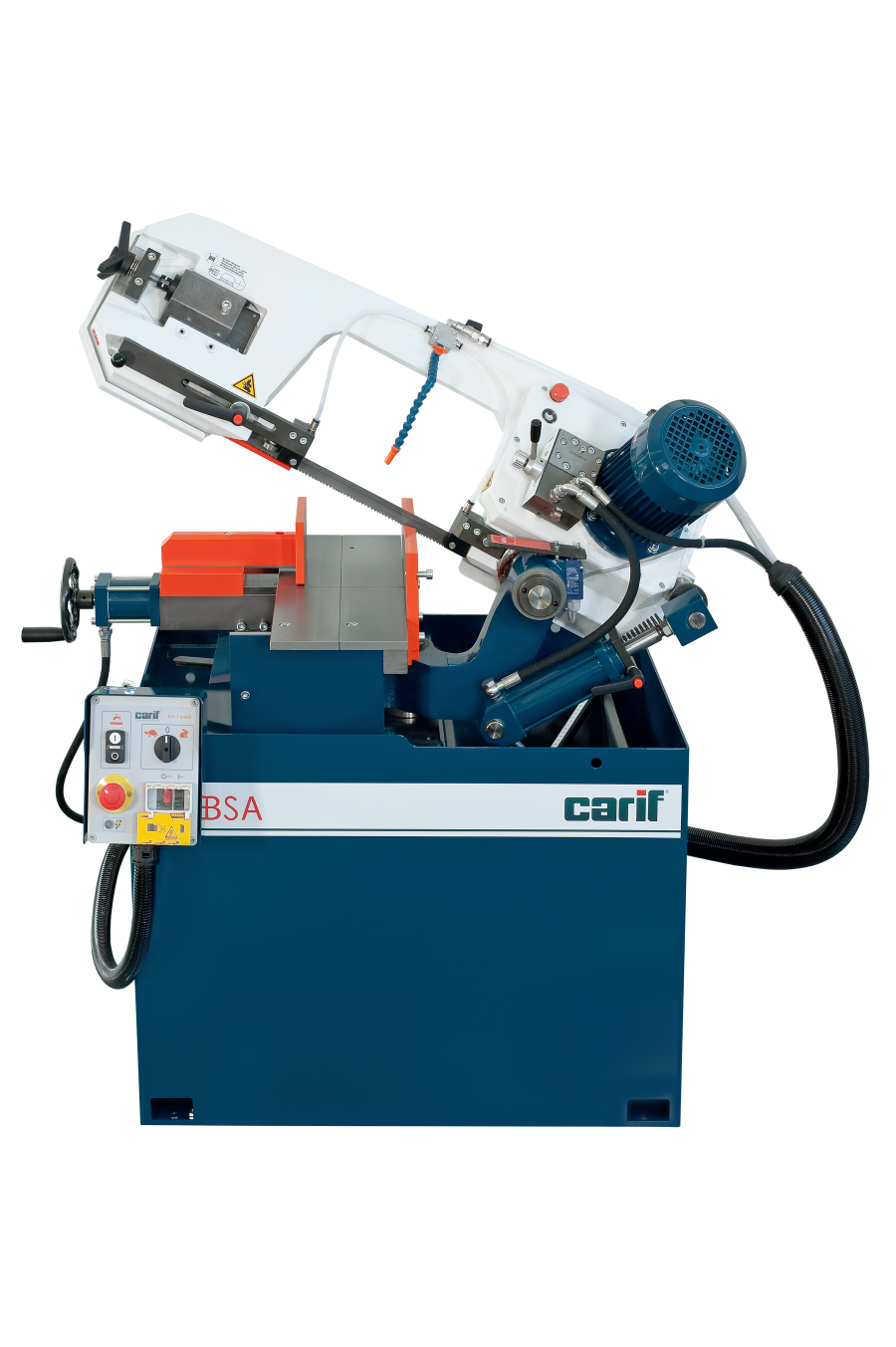

The Carif 260 BSA is a robust sawing machine with a steel base cabinet and hardened aluminum saw bracket. The patented hydraulic system regulates the lowering speed and cutting pressure for precision. The machine has a 1.4/1.1 kW motor, miter cuts (-45°/+60°) and has an ergonomically movable control box. Furthermore, it contains a cooling system with a 50-liter tank, bi-metal saw blade M42 and a large, easy-to-clean chip collection container.

Details

Robust base cabinet made of steel, bright and smooth powder coated
Saw frame made of hardened aluminum alloy
Patented hydraulic system for fine adjustment of the lowering speed of the bracket and the cutting pressure
Motor 1.4/1.1 Kw; 2 turns 33-66 m/min
Miter cuts -45°/+60°; bracket rotates by means of conical bearings and independent of the material bearing plates
Control box, easy to move for best ergonomics
Wide support plates for comfortable and practical sawing
Complete cooling system with a 50 liter tank
Stop length in mm L=500 mm
Large chip collection container, easy to clean
Bi-metal saw blade M42 2450x27x0.9mm Delivered on pallet with cardboard box, key for degree adjustment, manual and parts list
